Unit 2: Recurrence Relations

1. Introduction to Recurrence Relations

Definition

A recurrence relation for a sequence $a_0, a_1, a_2, \dots$ is an equation that relates the $n$ -th term, $a_n$ , to one or more of its predecessors ( $a_{n-1}, a_{n-2}, \dots$ ).

Order: The difference between the highest and lowest subscripts of the terms present in the relation.
Solution: A sequence that satisfies the recurrence relation.
Initial Conditions: Specific values given for the first few terms (e.g., $a_0 = 1$ ) required to find a unique solution.

Modelling with Recurrence Relations

Recurrence relations are used to model problems where the state at step $n$ depends on the state at previous steps.

Compound Interest: $P_n = (1 + r)P_{n-1}$
Fibonacci Sequence: $F_n = F_{n-1} + F_{n-2}$ (modelling rabbit populations).
Tower of Hanoi: $H_n = 2H_{n-1} + 1$ .

2. Homogeneous Linear Recurrence Relations (Constant Coefficients)

Standard Form

A linear homogeneous recurrence relation of degree $k$ with constant coefficients is:

a_n = c_1 a_{n-1} + c_2 a_{n-2} + \dots + c_k a_{n-k}

Where

c_1, c_2, \dots, c_k

are real constants and

c_k \neq 0

Method of Solution (Characteristic Roots)

Form the Characteristic Equation: Replace $a_n$ with $r^n$ .

$r^k - c_1 r^{k-1} - c_2 r^{k-2} - \dots - c_k = 0$
Find the Roots: Solve for $r$ .
Write the General Solution:

Nature of Roots Form of Solution ( $a_n^{(h)}$ )

Distinct Real Roots ( $r_1 \neq r_2 \dots$ ) $a_n = A(r_1)^n + B(r_2)^n + \dots$

Repeated Real Roots ( $r_1$ repeated $m$ times) $a_n = (A_1 + A_2n + \dots + A_m n^{m-1})r_1^n$

Complex Roots ( $\alpha \pm i\beta$ ) $a_n = \rho^n (A \cos(n\theta) + B \sin(n\theta))$
where $\rho = \sqrt{\alpha^2+\beta^2}, \theta = \tan^{-1}(\frac{\beta}{\alpha})$
Find Constants: Use initial conditions to solve for $A, B, \dots$ .

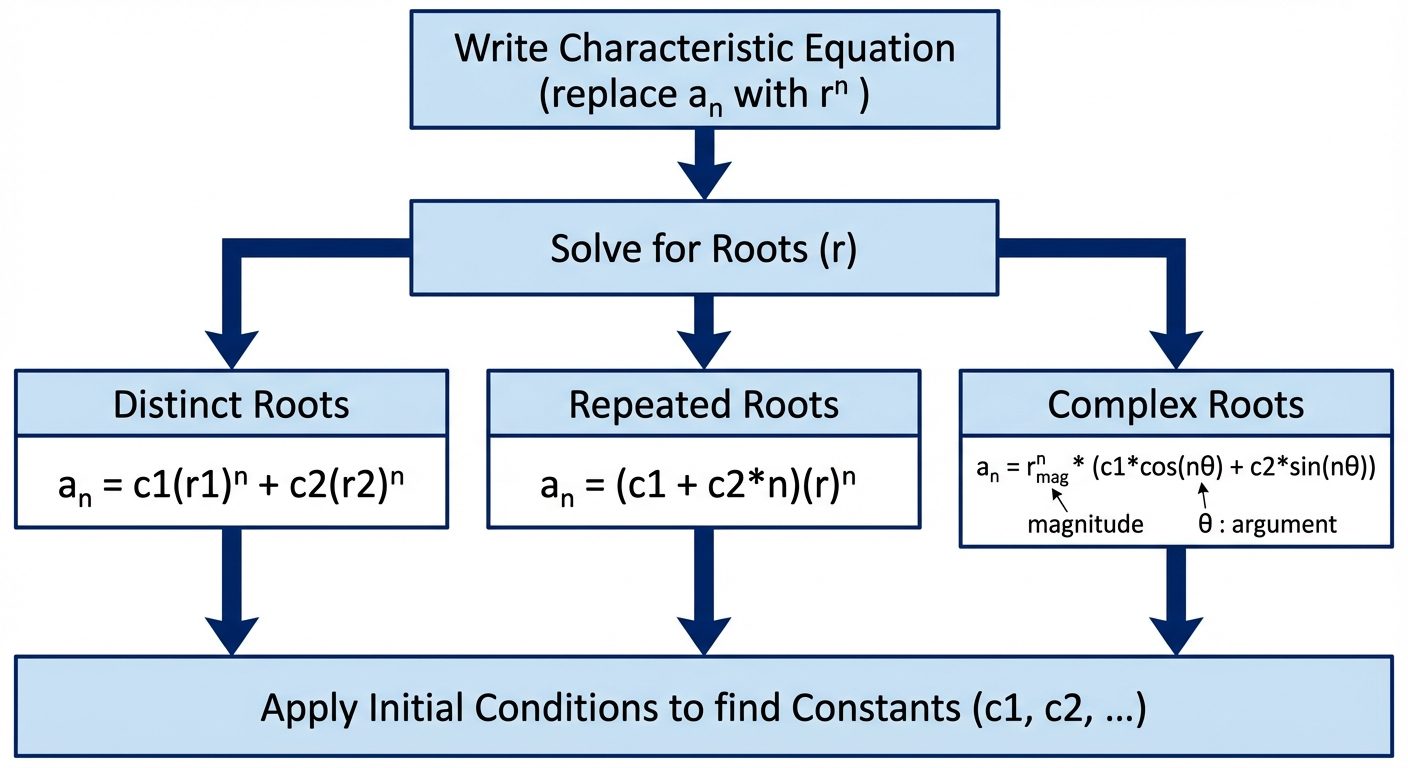

A detailed vertical flowchart diagram illustrating the algorithm for solving Linear Homogeneous Recu... — AI-generated image — may contain inaccuracies

3. Non-Homogeneous Relations: Method of Inverse Operator

Standard Form

f(E)a_n = R(n)

Where

E

is the shift operator such that

E a_n = a_{n+1}

and

E^k a_n = a_{n+k}

General Solution structure

a_n = a_h + a_p

$a_h$ (Homogeneous Solution): Solved by setting $R(n) = 0$ (see section 2).
$a_p$ (Particular Solution): Calculated as $a_p = \frac{1}{f(E)} R(n)$ .

Inverse Operator Rules for Particular Solutions

The particular solution depends on the form of $R(n)$ :

Case 1: Exponential Form $R(n) = \alpha^n$

If $f(\alpha) \neq 0$ : $\frac{1}{f(E)} \alpha^n = \frac{1}{f(\alpha)} \alpha^n$
If $f(\alpha) = 0$ (Case of failure): Differentiate $f(E)$ with respect to $E$ .
$\frac{1}{(E-\alpha)^k} \alpha^n = \frac{n(n-1)\dots(n-k+1)}{k! \alpha^k} \alpha^n$ (typically approximated as $\frac{n^k}{k!}\alpha^{n-k}$ )

Case 2: Polynomial Form $R(n) = n^k$

Convert $f(E)$ to terms of $\Delta$ (where $E = 1 + \Delta$ ).
Expand $[f(1+\Delta)]^{-1}$ using Binomial expansion up to term $\Delta^k$ .
Apply the expanded operator to $n^k$ .

Case 3: Product Form $R(n) = \alpha^n \cdot P(n)$

$\frac{1}{f(E)} (\alpha^n P(n)) = \alpha^n \frac{1}{f(\alpha E)} P(n)$
This shifts $\alpha^n$ out and changes $E$ to $\alpha E$ in the denominator.

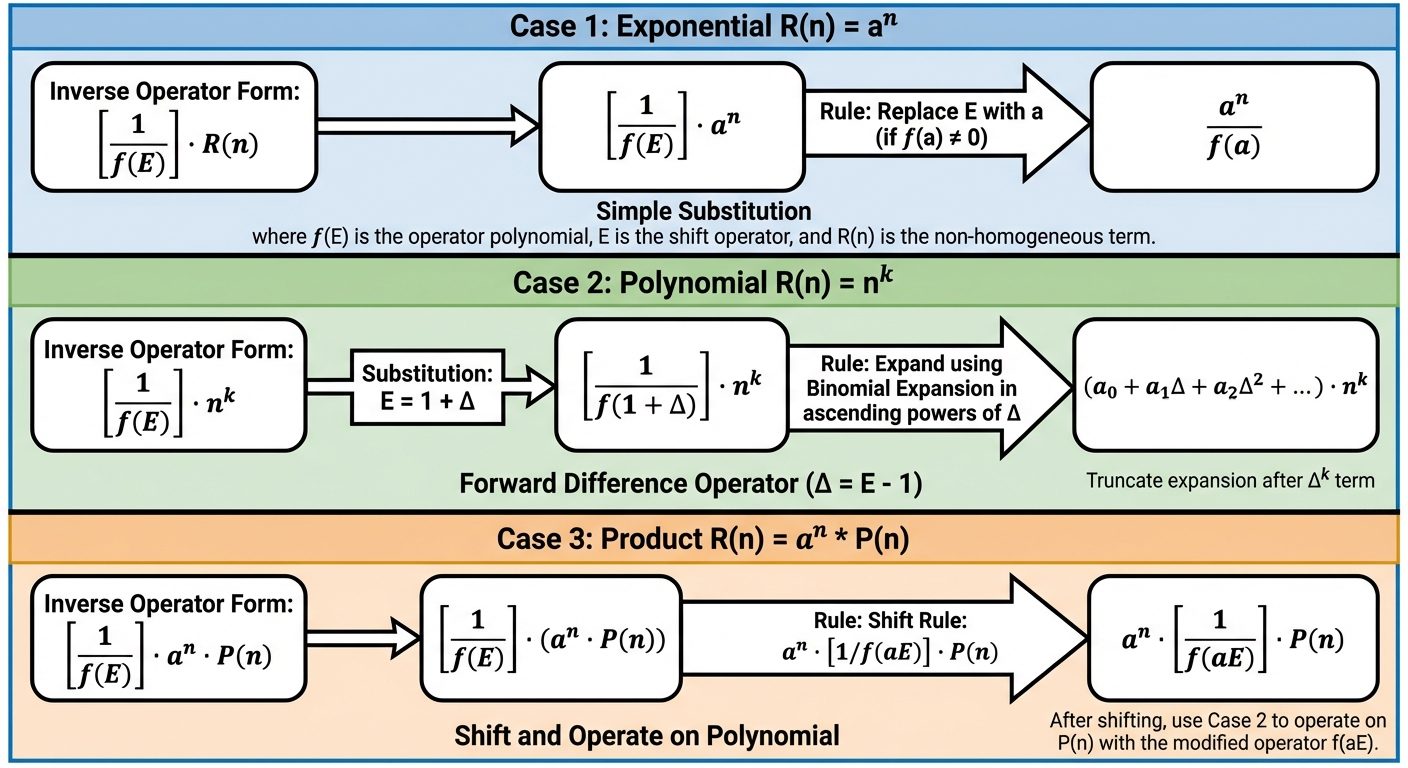

A structured block diagram or cheat sheet visual summarizing the Inverse Operator Rules for Non-Homo... — AI-generated image — may contain inaccuracies

* P(n)". Use distinct colors for each case (e.g., green, orange, purple) with mathematical formulas clearly rendered in bold black text.]

4. Generating Functions

Definition

The generating function for a sequence $a_0, a_1, a_2, \dots$ is the infinite series:

G(x) = \sum_{n=0}^{\infty} a_n x^n = a_0 + a_1 x + a_2 x^2 + \dots

Important Series Expansions

Memorizing these is crucial for solving recurrences:

Geometric Series: $\frac{1}{1-x} = \sum_{n=0}^{\infty} x^n = 1 + x + x^2 + \dots$
Binomial (Negative exponent): $\frac{1}{(1-x)^k} = \sum_{n=0}^{\infty} \binom{n+k-1}{k-1} x^n$
Specific Case ( $k=2$ ): $\frac{1}{(1-x)^2} = \sum_{n=0}^{\infty} (n+1) x^n$

5. Solving Recurrence Relations using Generating Functions

This method converts the recurrence relation into an algebraic equation.

The Algorithm

Multiply & Sum: Multiply the recurrence relation by $x^n$ and sum from $n=k$ (where $k$ is the order) to $\infty$ .
Substitute G(x):
- Replace $\sum_{n=0}^{\infty} a_n x^n$ with $G(x)$ .
- Shift indices for terms like $a_{n-1}$ to express them in terms of $x G(x)$ .
- Example: $\sum_{n=1}^{\infty} a_{n-1} x^n = x \sum_{n=1}^{\infty} a_{n-1} x^{n-1} = x G(x)$ .
Solve Algebraically: Rearrange the equation to solve explicitly for $G(x)$ . The result is usually a rational function (fraction of polynomials).
Extract Coefficients: Use Partial Fraction Decomposition and known series expansions to find the coefficient of $x^n$ , which is $a_n$ .

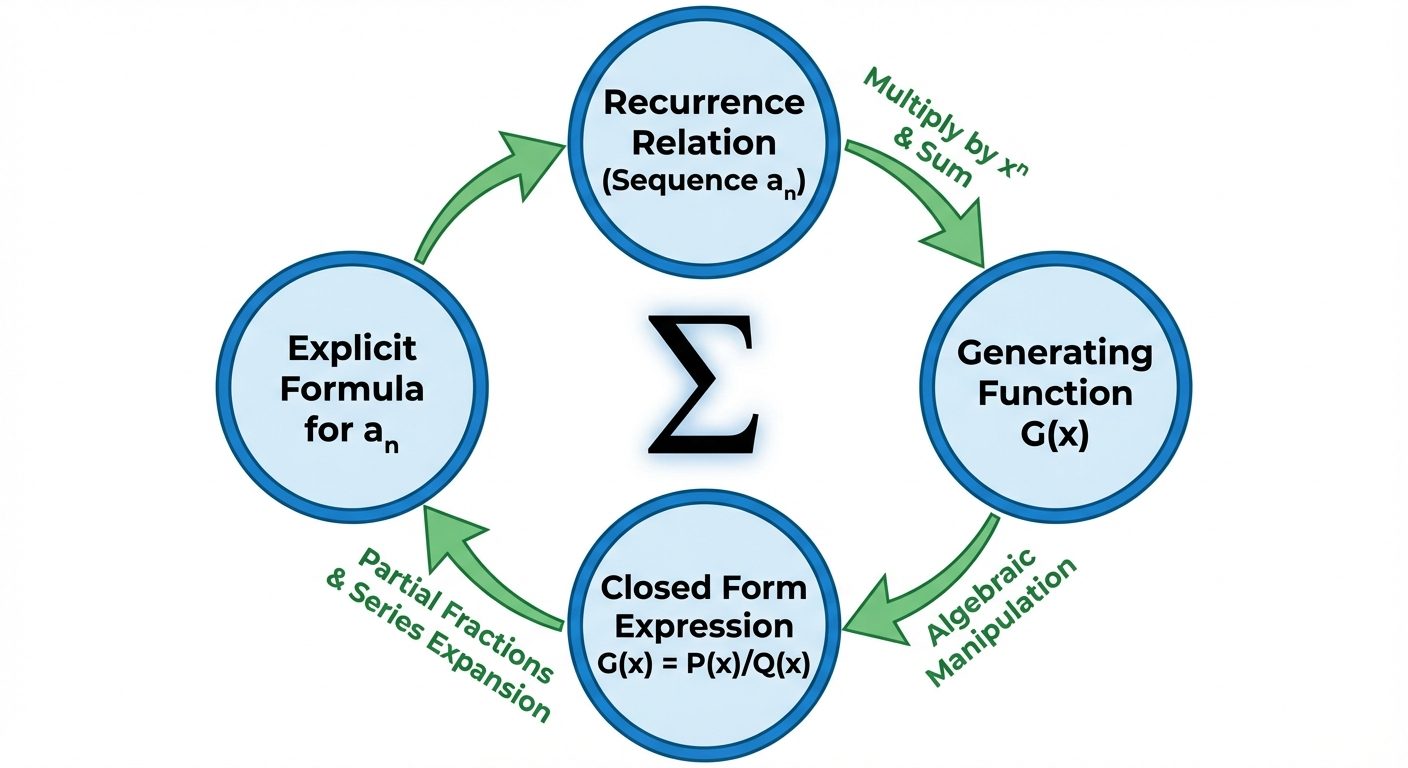

A cycle diagram illustrating the "Method of Generating Functions". Four circular nodes connected in ... — AI-generated image — may contain inaccuracies

Example Setup

Given: $a_n - 3a_{n-1} = 0, a_0 = 2$ .

Multiply by $x^n$ : $\sum a_n x^n - 3 \sum a_{n-1} x^n = 0$ .
Shift: $(G(x) - a_0) - 3xG(x) = 0$ .
Solve: $G(x)(1 - 3x) = 2 \implies G(x) = \frac{2}{1-3x}$ .
Expand: $G(x) = 2 \sum (3x)^n = \sum 2(3^n)x^n$ .
Result: $a_n = 2 \cdot 3^n$ .
