Unit 6: Derived types including structures and unions / Concepts and Basics of C++ Programming

1. Structures

Declaration of a Structure

A structure is a user-defined data type in C/C++ that allows you to combine data items of different kinds (e.g., integers, floats, chars) into a single logical unit.

Syntax:

struct StructureName {
    dataType member1;
    dataType member2;
    // ...
};

• The keyword struct starts the declaration.
• StructureName (or tag) is the name of the new type.
• The definition must end with a semicolon ;.

Definition and Initialization of Structures

Defining a structure variable allocates memory. Initialization assigns values to members at the time of definition.

Example:

struct Student {
    int rollNo;
    char name[50];
    float marks;
};

int main() {
    // Definition
    struct Student s1;

    // Definition with Initialization
    struct Student s2 = {101, "Alice", 92.5};

    // C++ allow omitting the 'struct' keyword during instantiation
    Student s3 = {102, "Bob", 88.0};
    return 0;
}

Accessing Structure Members

Structure members are accessed using the Member Access Operator (also known as the Dot Operator .).

Syntax: structureVariable.memberName

s1.rollNo = 105;          // Assigning value
cout << s2.marks;         // Reading value

Structures and Pointers

You can create a pointer that points to a structure. To access members via a pointer, you use the Arrow Operator (->).

Syntax: pointerName->memberName

Example:

struct Point {
    int x;
    int y;
};

int main() {
    Point p1 = {10, 20};
    Point *ptr = &p1; // ptr holds the address of p1

    // Accessing using pointer
    ptr->x = 30;      // Equivalent to (*ptr).x = 30;

    // Accessing using dot operator on the object
    // p1.x is now 30
}

Nested Structures

A structure can be a member of another structure. This is called nesting.

Example:

struct Date {
    int day;
    int month;
    int year;
};

struct Employee {
    int id;
    char name[20];
    struct Date joiningDate; // Nested structure
};

int main() {
    Employee e1;
    e1.id = 1;

    // Accessing nested members
    e1.joiningDate.day = 15;
    e1.joiningDate.year = 2023;
}

2. Unions

Declaration of a Union

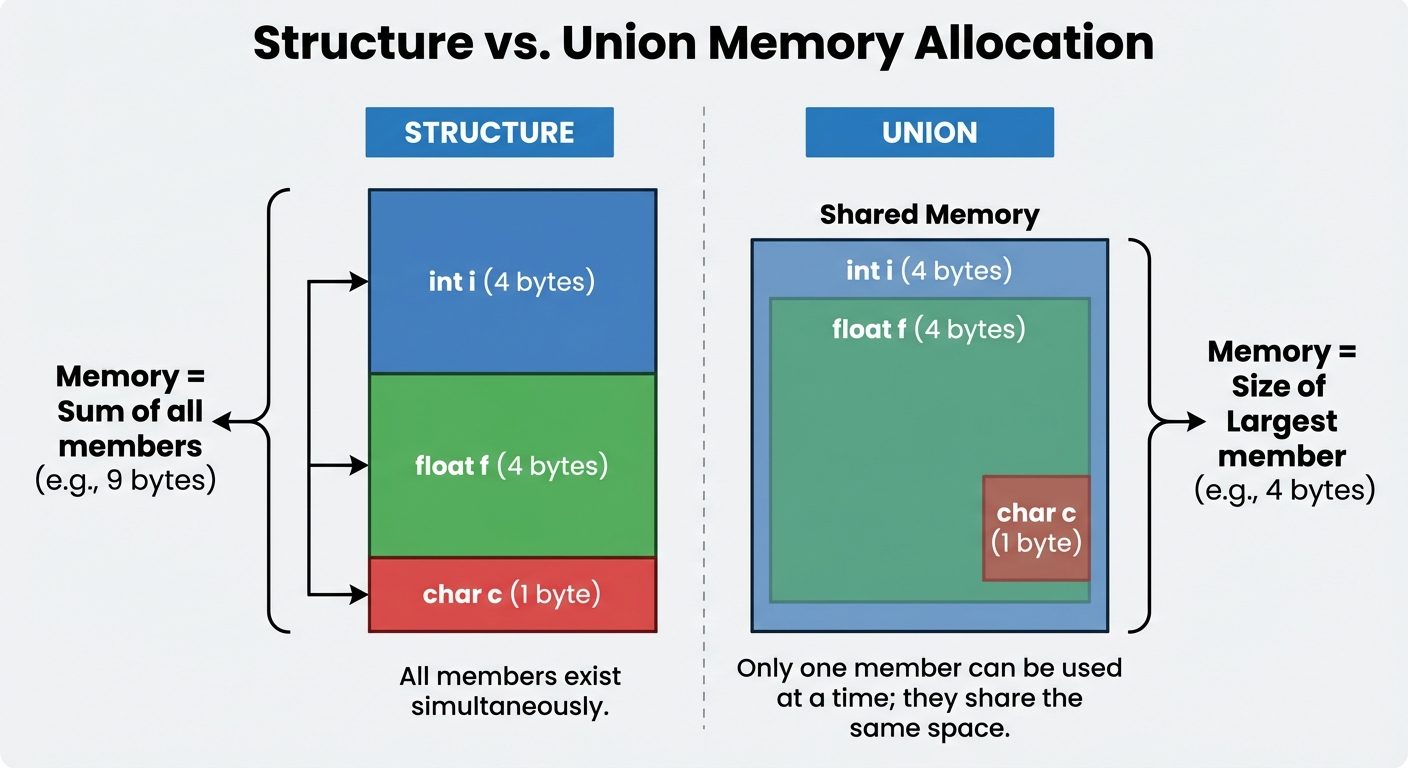

A Union is similar to a structure, but all members share the same memory location. The size of the union is equal to the size of its largest member. Only one member can contain a valid value at any given time.

Syntax:

union Data {
    int i;
    float f;
    char str[20];
};

Memory Usage Example:

• In the example above, int is 4 bytes, float is 4 bytes, str is 20 bytes.
• The size of union Data is 20 bytes.
• If it were a struct, the size would be roughly 28 bytes (depending on padding).

Accessing Union Members:
Same as structures, using the dot operator (.) or arrow operator (->) for pointers. Note that writing to one member overwrites the others.

3. Basics of C++ Programming

Reading and Writing Data (cin and cout)

C++ uses the iostream library for Input/Output.

1. Standard Output (cout):

   • Stands for "Character Output".
   • Used with the Insertion Operator (<<).
   • Sends data to the standard output stream (screen).
   • Example: std::cout << "Hello World" << std::endl;

2. Standard Input (cin):

   • Stands for "Character Input".
   • Used with the Extraction Operator (>>).
   • Reads data from the standard input stream (keyboard).
   • Example: std::cin >> variableName;

Example:

#include <iostream>
using namespace std;

int main() {
    int age;
    cout << "Enter your age: "; // Output
    cin >> age;                 // Input
    cout << "You are " << age << " years old.";
    return 0;
}

4. Object-Oriented Programming (OOP) in C++

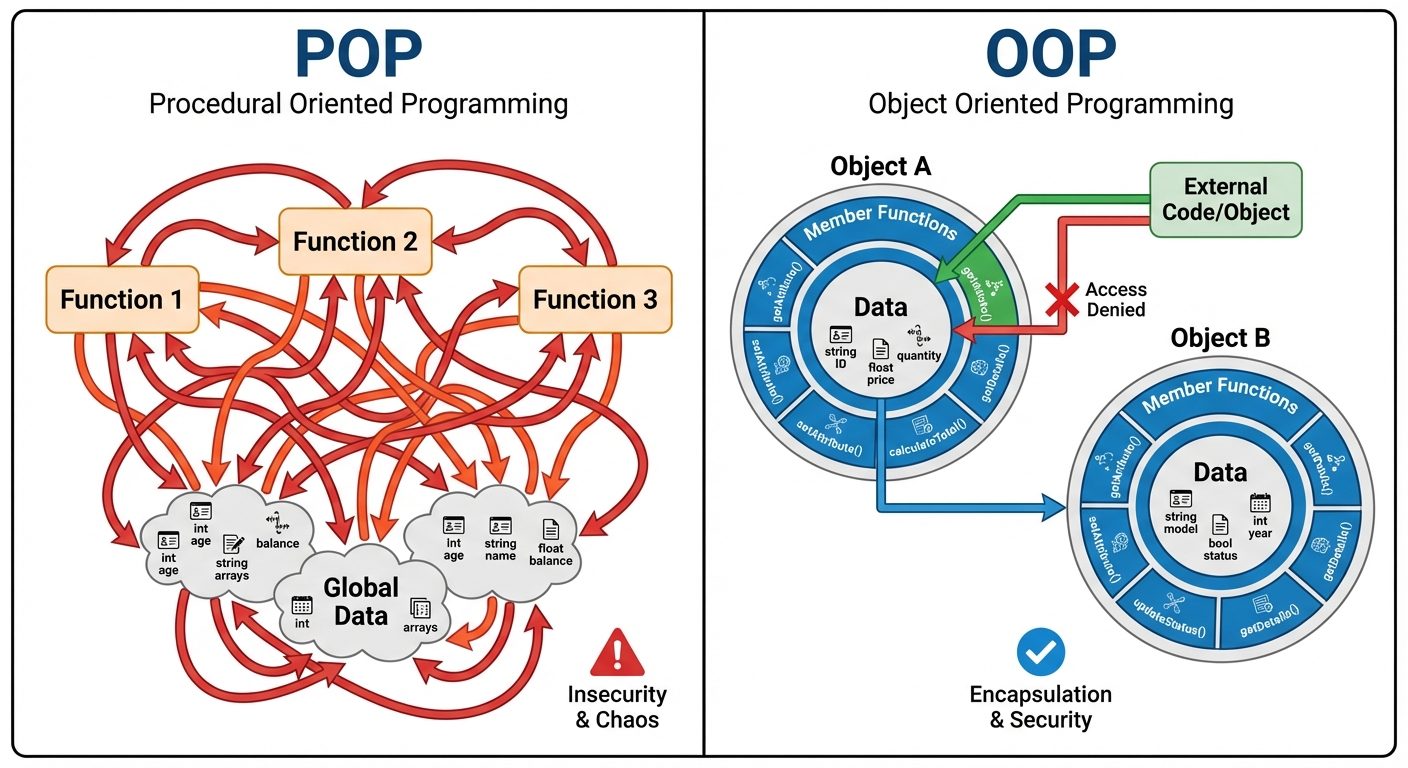

Differences between Procedural and OOP Paradigms

Creating Classes

A Class is a blueprint for creating objects. It encapsulates data (attributes) and functions (methods) into a single unit. By default, members of a class are private.

Syntax:

class ClassName {
    private:
        // Data members (variables)
        // Member functions meant for internal use
    public:
        // Data members
        // Member functions accessible from outside
};

Class Objects

An Object is an instance of a class. When a class is defined, no memory is allocated. Memory is allocated when an object is instantiated.

Syntax: ClassName objectName;

Accessing Class Members

Public members are accessed using the dot operator (.). Private members cannot be accessed directly from outside the class.

Example:

class Rectangle {
    private:
        int length; // Private data
        int width;

    public:
        // Public function to set data
        void setDimensions(int l, int w) {
            length = l;
            width = w;
        }
        // Public function to get area
        int getArea() {
            return length * width;
        }
};

int main() {
    Rectangle rect;          // Creating Object
    rect.setDimensions(5, 4); // Accessing member function
    cout << rect.getArea();   // Output: 20
    // rect.length = 10;     // Error: length is private
}

5. Member Functions

Inline Functions

An inline function is a function where the compiler replaces the function call with the actual code of the function to reduce function call overhead.

• Implicit Inline: Functions defined inside the class definition are automatically inline.
• Explicit Inline: Using the inline keyword.

Example:

class Math {
public:
    // Defined inside class (Implicit Inline)
    int add(int a, int b) {
        return a + b;
    }
};

Non-inline Member Functions

These are declared inside the class but defined outside the class using the Scope Resolution Operator (::). This keeps the class definition clean.

Example:

class Math {
public:
    int multiply(int a, int b); // Declaration only
};

// Definition outside
int Math::multiply(int a, int b) {
    return a * b;
}

6. Static Members

Static Data Members

• Declared using the static keyword.
• One copy per class, shared by all objects of that class.
• Initialized to 0 by default.
• Must be defined outside the class to allocate memory.

Static Member Functions

• Can only access static data members and other static member functions.
• Called using the class name, not a specific object.

Example:

class Box {
private:
    static int objectCount; // Static data declaration

public:
    Box() {
        objectCount++;
    }

    // Static function
    static int getCount() {
        return objectCount;
    }
};

// Definition and initialization of static member
int Box::objectCount = 0;

int main() {
    Box b1, b2, b3;
    // Accessing static function via Class Name
    cout << Box::getCount(); // Output: 3
}

7. Comparison of Derived Types

Differences between Structures, Unions, Enumerations, and Classes

Note on Enumeration:
An enum is a user-defined type consisting of a set of named integral constants.

enum Color { RED, GREEN, BLUE }; // RED=0, GREEN=1, BLUE=2
Color c = RED;
