Unit 4: Relational Database Design

Data Integrity Rules

Data integrity refers to the overall completeness, accuracy, and consistency of data in a relational database. To maintain this, databases enforce specific rules known as integrity constraints. These rules ensure that changes made to the database by authorized users do not result in a loss of data consistency.

There are four primary types of data integrity rules:

1. Domain Integrity

• Definition: Ensures that all data items in a column fall within a defined set of valid values.
• Enforcement: Achieved through data types (e.g., integer, varchar, date), constraints (NOT NULL, CHECK, DEFAULT), and permitted value ranges.
• Example: A column Age must be an integer, and a CHECK (Age > 0) constraint ensures no negative values are entered.

2. Entity Integrity

• Definition: Ensures that each row in a table is uniquely identifiable.
• Rule: The primary key of a table cannot be null, and it must be unique. If a primary key were null, the database would lose the ability to uniquely identify that specific record.
• Example: In a Student table, the StudentID must have a unique value for every row and cannot be left blank.

3. Referential Integrity

• Definition: Ensures that relationships between tables remain consistent.
• Rule: A foreign key in one table must either match a valid primary key value in another table or be entirely null. This prevents "orphan records."
• Example: If an Employee table has a DepartmentID foreign key linking to a Department table, you cannot insert an employee with a DepartmentID that does not exist in the Department table.

4. User-Defined Integrity

• Definition: Specific business rules that do not fall into the categories of domain, entity, or referential integrity.
• Enforcement: Typically handled through triggers, stored procedures, and complex assertions.
• Example: "A customer's total outstanding credit cannot exceed $10,000."

Functional Dependency

Functional dependency (FD) is a relationship that exists when one attribute (or a set of attributes) uniquely determines another attribute (or set of attributes) within a relation. It is the cornerstone of relational database normalization.

Definition and Notation

If X and Y are sets of attributes in a relation R, then Y is functionally dependent on X (denoted as X → Y) if, for every valid instance of R, each value of X uniquely determines exactly one value of Y.

• X is called the Determinant.
• Y is called the Dependent.

Example:
In a table Employee(EmpID, EmpName, Salary):

• EmpID → EmpName (Because knowing the EmpID allows you to uniquely identify the EmpName).

Types of Functional Dependencies

1. Trivial Functional Dependency: is trivial if Y is a subset of X. (e.g., {EmpID, EmpName} → EmpID).
2. Non-Trivial Functional Dependency: is non-trivial if Y is not a subset of X. (e.g., EmpID → EmpName).
3. Fully Functional Dependency: If , and removing any attribute from X means the dependency no longer holds.

Armstrong's Axioms

These are inference rules used to deduce all possible functional dependencies in a database:

1. Reflexivity: If , then .
2. Augmentation: If , then for any .
3. Transitivity: If and , then .

Need of Normalization

Normalization is the process of organizing data in a database to reduce redundancy and improve data integrity. Unnormalized databases suffer from anomalies that make data management difficult and prone to errors.

Anomalies Addressed by Normalization

1. Insertion Anomaly: Occurs when certain attributes cannot be inserted into the database without the presence of other attributes.
   • Example: If a table stores (StudentID, CourseID, ProfessorName), you cannot add a new professor who hasn't been assigned a course yet, unless StudentID and CourseID are allowed to be NULL.
2. Update Anomaly: Occurs when duplicate data is updated in one place but not in all other places, leading to inconsistent data.
   • Example: If a student's address is stored multiple times for each course they take, updating their address requires updating multiple rows. If one row is missed, the data becomes inconsistent.
3. Deletion Anomaly: Occurs when deleting a row of data inadvertently causes the loss of other unrelated data.
   • Example: If a student drops the only course a specific professor teaches, deleting the student's record might inadvertently delete the professor's details from the database.

Objectives of Normalization

• Eliminate redundant data (storing the same data in more than one table).
• Ensure data dependencies make logical sense (storing related data together).
• Minimize the use of null values.
• Prevent insertion, update, and deletion anomalies.

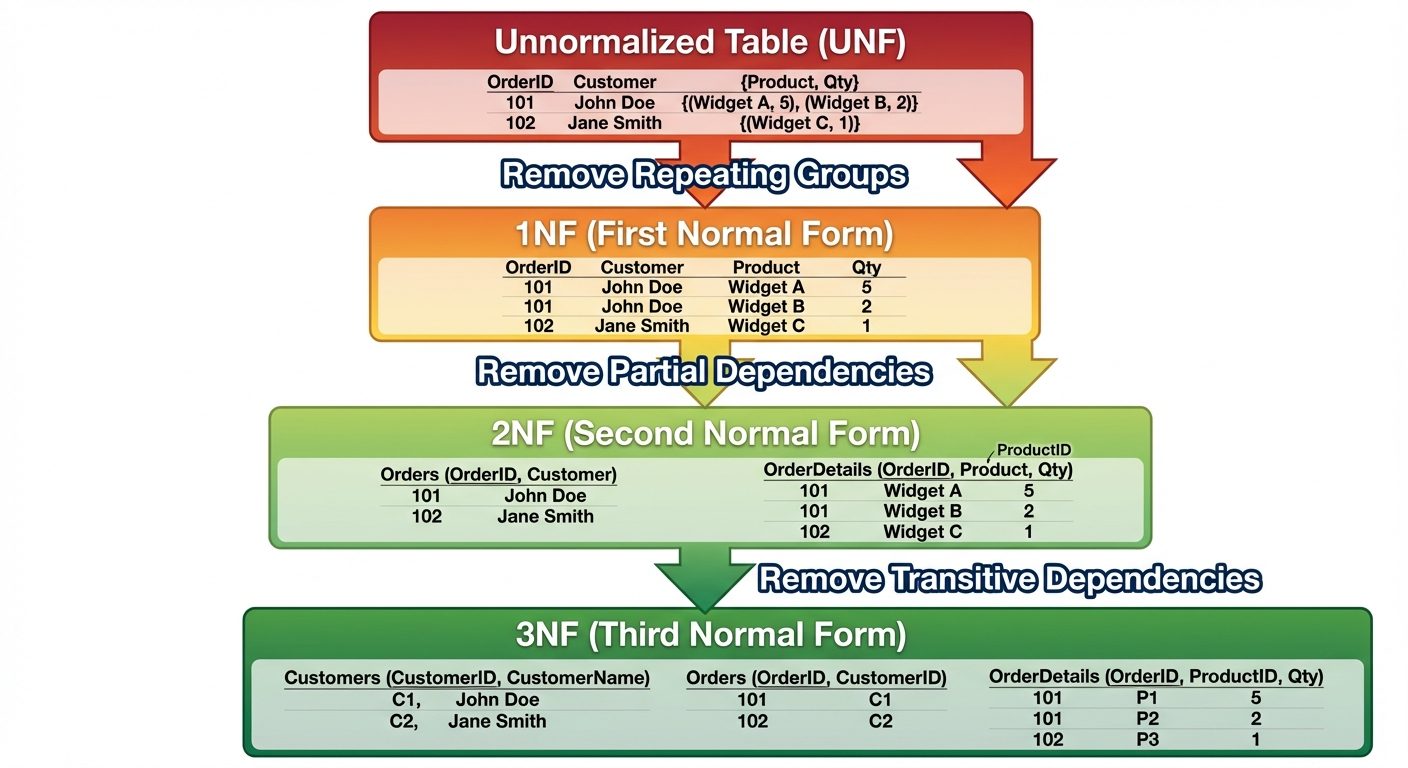

First Normal Form (1NF)

A relation is in First Normal Form if it meets the following rules:

1. Atomicity: Each attribute must contain only atomic (indivisible) values. No multi-valued attributes or repeating groups are allowed.
2. Each column must have a unique name.
3. The order in which data is stored does not matter.

Example

Unnormalized Table:

The Courses column contains multiple values, violating 1NF.

1NF Compliant Table:

Second Normal Form (2NF)

A relation is in Second Normal Form if:

1. It is already in 1NF.
2. It has no partial dependencies.

Partial Dependency: Occurs when a non-prime attribute (an attribute not part of any candidate key) is dependent on only a part of a composite primary key, rather than the entire key.
(Note: If a table has a single-attribute primary key and is in 1NF, it is automatically in 2NF).

Example

1NF Table (Primary Key = {StudentID, CourseID}):

• Candidate Key: {StudentID, CourseID}
• Dependency: StudentID → StudentName
• Violation: StudentName depends only on StudentID (part of the primary key), not on CourseID. This is a partial dependency.

2NF Compliant Tables:
Decompose into two tables:

Third Normal Form (3NF)

A relation is in Third Normal Form if:

1. It is in 2NF.
2. It has no transitive dependencies.

Transitive Dependency: Occurs when a non-prime attribute functionally determines another non-prime attribute. (i.e., if A → B and B → C, then A → C).

Formally, a relation is in 3NF if for every non-trivial functional dependency , at least one of the following holds true:

• is a superkey.
• is a prime attribute (part of a candidate key).

Example

2NF Table (Primary Key: EmpID):

• Dependency: EmpID → DeptID and DeptID → DeptLocation.
• Violation: DeptLocation is dependent on DeptID, which is a non-prime attribute. This creates a transitive dependency (EmpID → DeptLocation).

3NF Compliant Tables:

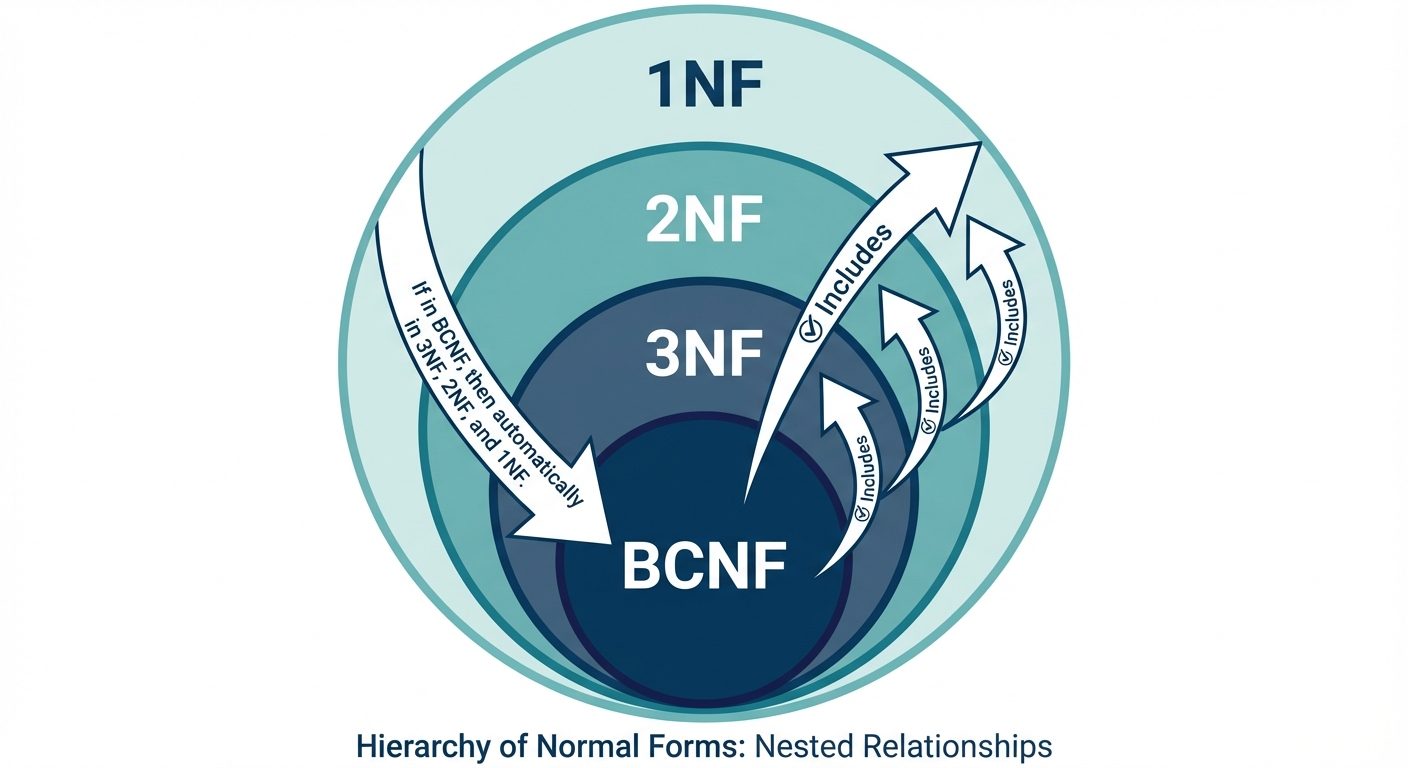

Boyce-Codd Normal Form (BCNF)

BCNF is a stricter version of 3NF, often referred to as 3.5NF. A relation is in BCNF if:

1. It is in 3NF.
2. For every non-trivial functional dependency , must be a superkey.

The 3NF rule allows to be a prime attribute even if is not a superkey. BCNF removes this leniency. BCNF deals with anomalies that can occur when a table has multiple overlapping candidate keys.

Example

Table: Booking (Primary Key: {StudentID, Subject}):

Rules for this database:

• A student can have multiple subjects.

• A subject can be taught by multiple professors.

• A student is taught a specific subject by only one professor.

• A professor teaches only one subject.

• Candidate Keys: {StudentID, Subject} and {StudentID, Professor}

• Dependency: Professor → Subject (Since a professor teaches only one subject).

• 3NF Check: It is in 3NF because in Professor → Subject, Subject is a prime attribute.

• BCNF Check: It is NOT in BCNF because Professor is a determinant but not a superkey.

BCNF Compliant Tables:

Multivalued Dependencies (MVD)

A Multivalued Dependency exists when there are at least three attributes (e.g., A, B, C) in a relation, and for a single value of A, there are multiple values of B, and multiple values of C, but B and C are completely independent of each other.

• Notation: (Read as "X multidetermines Y").
• Condition: A relation has an MVD if, for a given value of , the set of values for is completely independent of the set of values for .

MVDs cause a massive multiplication of data rows (Cartesian product) to maintain data consistency.

Example Scenario

A Restaurant offers different Cuisines and provides different DeliveryAreas.
Cuisines and Delivery Areas are completely independent of each other. If a restaurant offers 3 cuisines and delivers to 3 areas, the database must store rows just to represent this accurately, causing extreme redundancy.

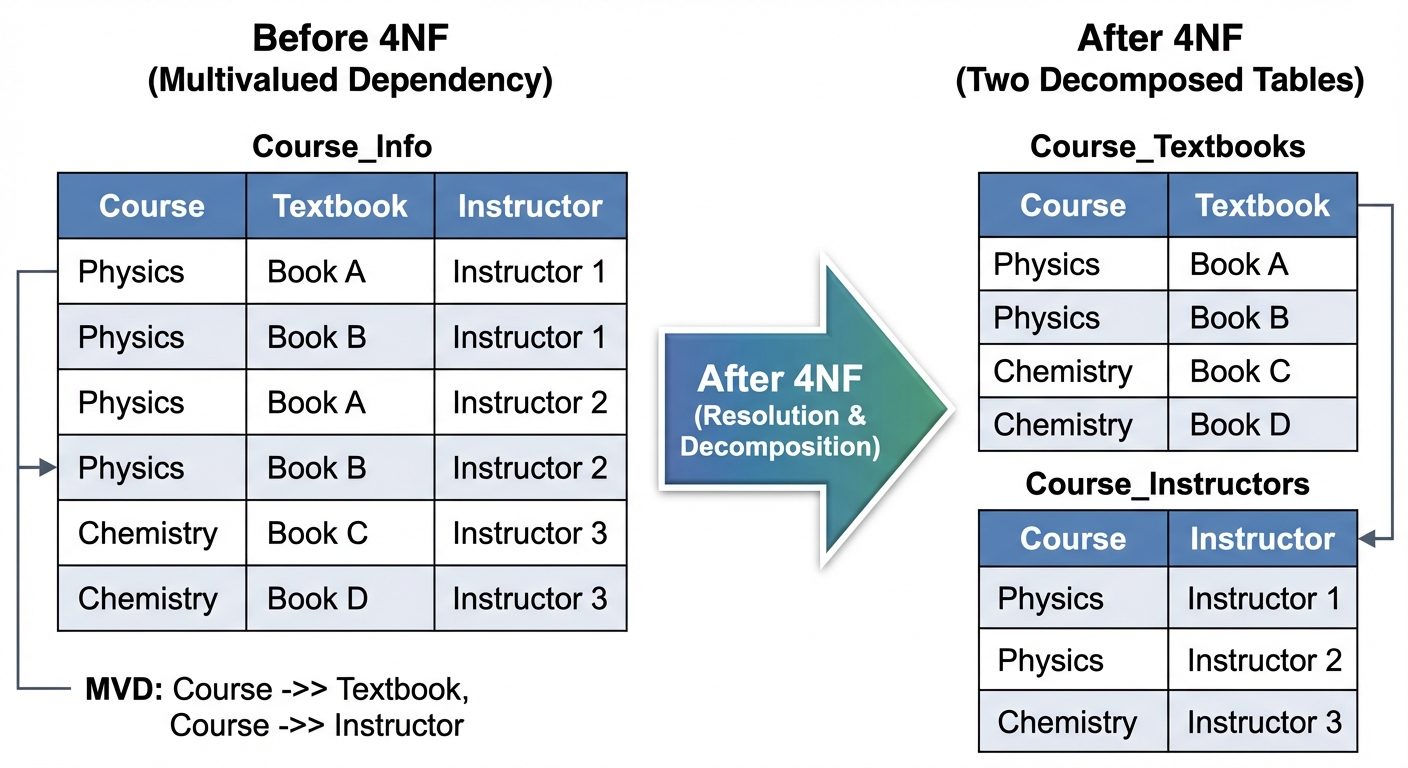

Fourth Normal Form (4NF)

A relation is in Fourth Normal Form if:

1. It is in BCNF.
2. It has no non-trivial multivalued dependencies.

Formally, for every non-trivial multivalued dependency , must be a superkey. If a table contains two or more independent multivalued attributes, it violates 4NF and must be decomposed.

Example

Table with MVD (Primary Key: {Restaurant, Cuisine, DeliveryArea}):

• Dependencies: Restaurant ↠ Cuisine and Restaurant ↠ DeliveryArea.
• Violation: Cuisine and DeliveryArea are independent of each other but depend on Restaurant. This is a non-trivial MVD, and Restaurant is not a superkey on its own.

4NF Compliant Tables:
Decompose the table to isolate the independent multivalued attributes.
